High-performance and unlimited fluency
HP EX950 M.2 is a HP SSD intended for eSports, which adopts NVMe 1.3 new generation data transfer protocol and supports PCIe Gen3(8Gb/s) x4 channels of data transmission. With read and write speeds reaching up to 3500MB/s and 2900MB/s respectively, it is a good choice for performance improvement of high-end motherboard, gaming laptop and Ultrabook, etc.
An eSports SSD born for game
HP EX950 M.2 SSD is suitable for mainstream eSports motherboard and is applicable to upgrade of gaming laptop, performance improvement of game platform, by accelerating game startup, map loading and scene change, etc.

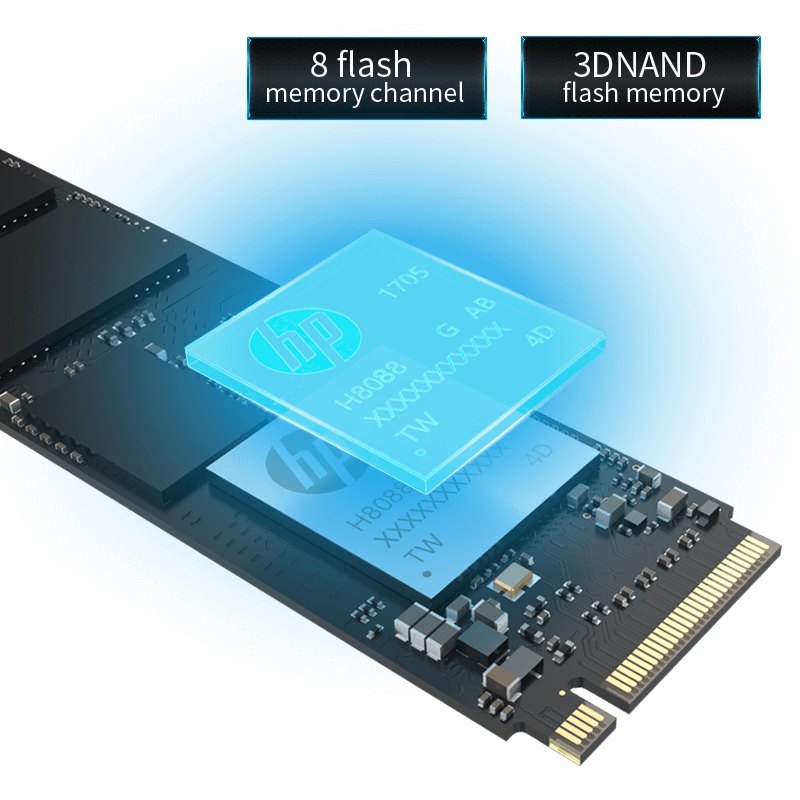

HP PCIe master controller is powerful and stable
HP EX950 M.2 is furnished with SSD high-performance master controller of HP 8 flash memory channel, and with 3D NAND flash memory, supporting PCIe Gen3(8Gb/s) x4 interfaces and new version of NVMe1.3 standard. ALL these have given it excellent high-speed read-write performance.
Low power consumption and long standby time
HP EX950 M.2 battery management helps to prevent overheat and ensures convenient and fast performance experience. Low power consumption and long standby time

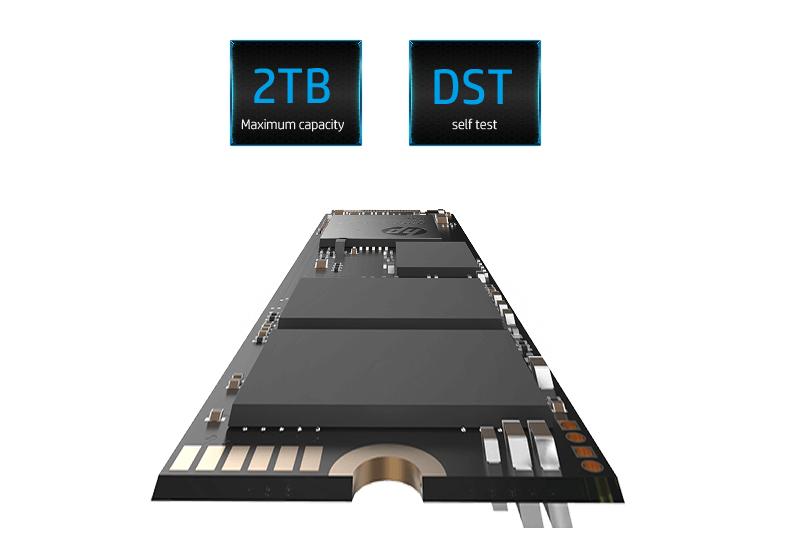

Mass storage and good compatibility
With a capacity reaching up to 2TB, EX950 can store plenty of media files and games and support DST self test.
Five-year warranty and reliable quality
In accordance with strict test standard for hard disk of HP, each SSD must undergo rigorous test before delivery so as to ensure product quality.
Specification
| Model | HP SSD EX950 M.2 | ||
| Capacity | 512GB | 1TB | 2TB |
| Part Number | 5MS22AA#ABC | 5MS23AA#ABC | 5MS24AA#ABC |
| Interface | |||
| HP SSD EX950 M.2 2280 | PCleGen3(8Gb/s)×4，NVMe1.3 | ||
| Performance | |||
| Max. sequential reading speed | 3500MB/s | 3500MB/s | 3500MB/s |
| Max. sequential writing speed | 2250MB/s | 2900MB/s | 2900MB/s |
| Random reading speed | 390K IOPS | 410K IOPS | 410K IOPS |
| Random writing speed | 370K IOPS | 370K IOPS | 380K IOPS |
| Reliability | |||
| MTBF | Up to 2 million hours | ||
| Environment | |||
| Storage temperature | -40°C ~ 85°C | ||
| Operating temperature | 0~70°C | ||
| Max. vibration Resistance | 100 G/6 msec | ||
| Certifications | CE、CB、FCC、cTUVus、KCC、BSMI、VCCI、RoHS、RCM | ||
| Dimensions & Weight | |||
| Size | 80x 22 mm | ||
| Thickness | ≤3.8mm | ||
| Weight | ≤5.4g | ||
| Limited Warranty | 5 Years or 320TBW | 5 Years or 650TBW | 5 Years or 1400TBW |
| *The speed tests were conducted in HP LABS. Actual end user results may vary due to different system or hardware environments. | |||
